The Traxxas 2wd Brushless Bigfoot BL-2s is my first Traxxas RC truck.

BIGFOOT No. 1 BL-2s

Part Number:  36334-4

MODEL SPECS

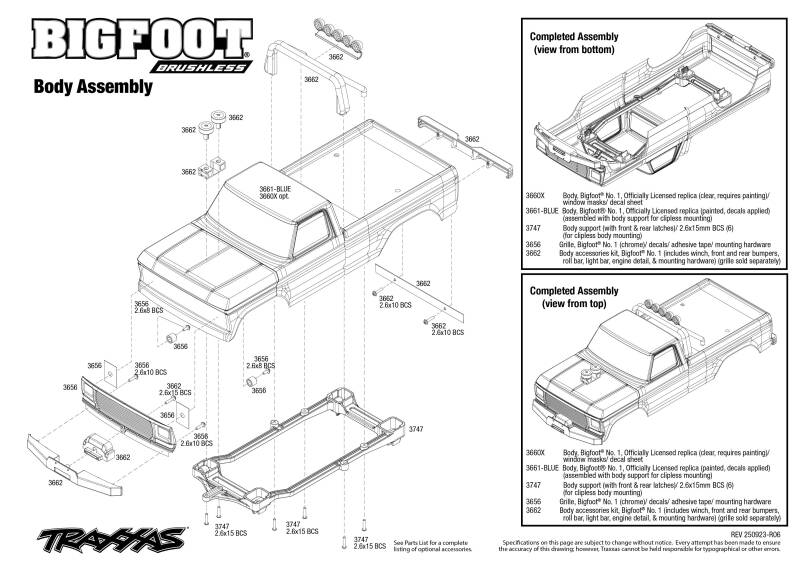

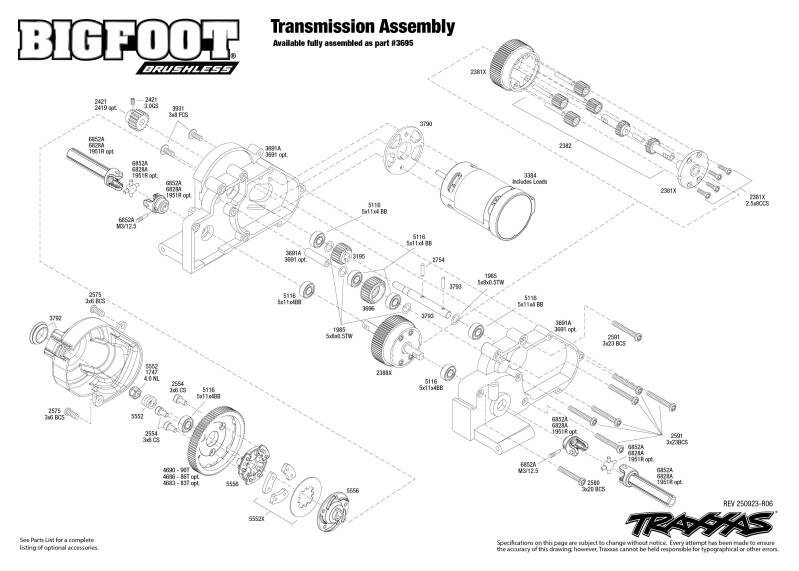

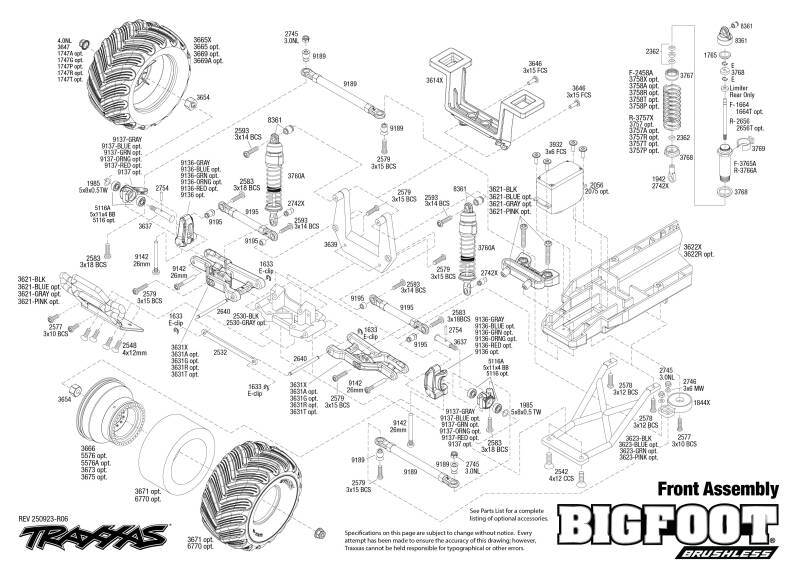

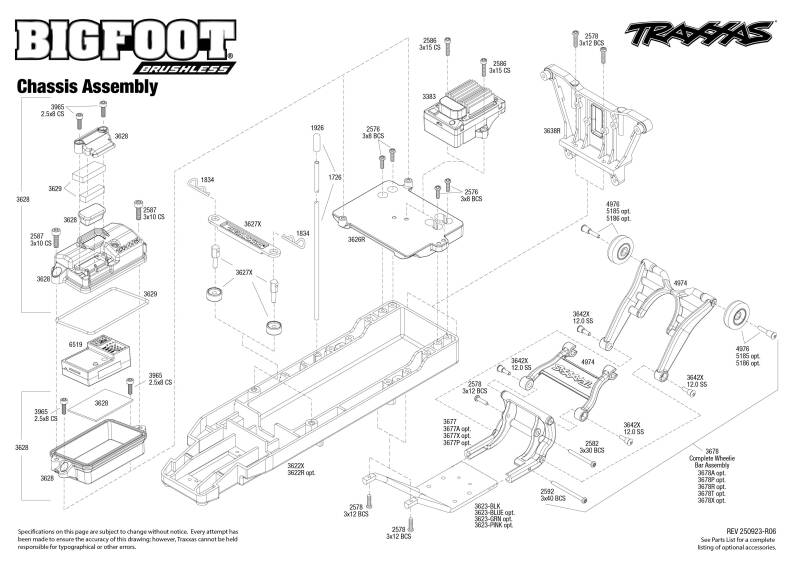

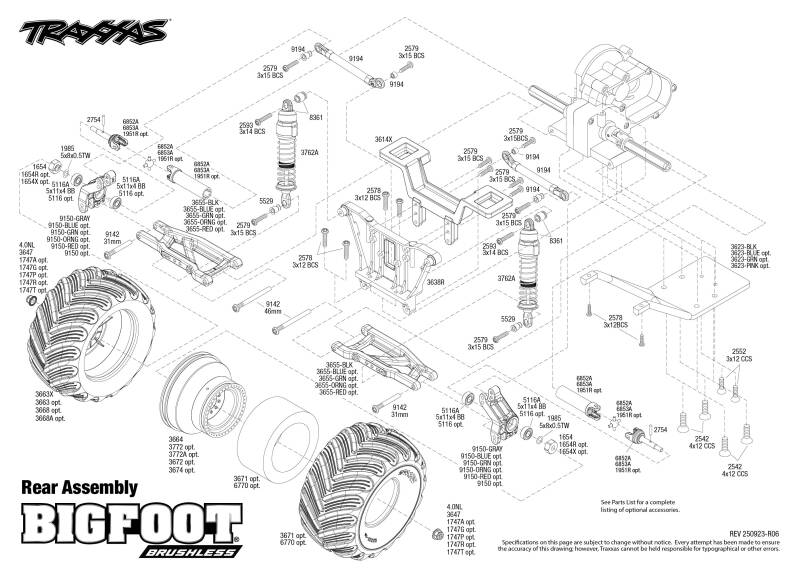

Exploded Views

The Truck That Started it All

Traxxas faithfully captures the spirit and classic look of BIGFOOT® No. 1 “The Original Monster Truck” in amazing detail with this fully licensed replica. With its new BL-2s™ brushless power system, BIGFOOT rips non-stop wheelies all the way to its 40+ mph top speed and crushes the competition underneath its towering stance. BIGFOOT is built Traxxas Tough™ with factory-installed Extreme Heavy Duty components to take even the most brutal punishment in stride.

BL-2s Brushless Power System
BIGFOOT’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.

Extreme Heavy Duty Components
Extreme Heavy Duty components come factory-installed on BIGFOOT No. 1 for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for ultimate strength. From HD suspension arms to the upgraded axles, BIGFOOT sets a new standard for durability on your off-road adventures.

Clipless Replica Body
BIGFOOT No. 1 comes Ready-To-Race® with a beautifully detailed clipless replica body. Bright chrome bumpers, side trim, and roll bars stand out against the brilliant blue paint. A chrome front grille, replica KC lights, and dual-carb engine manifold complete the authentic look. Best of all, BIGFOOT’s convenient hidden latching system replaces traditional body clips with clean lines.

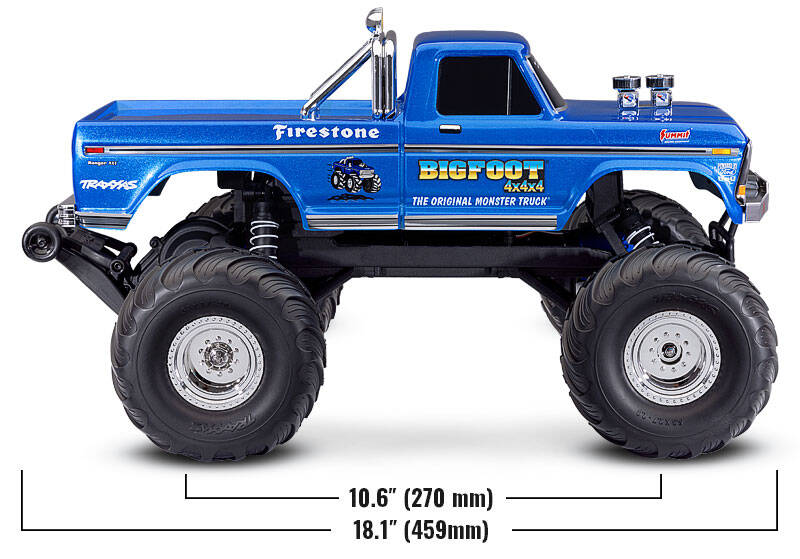

• Length: 18.1 inches (459 mm)

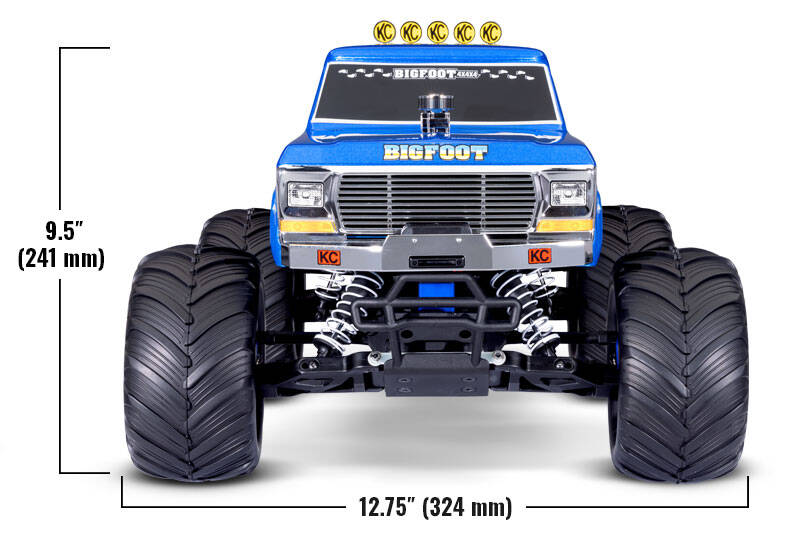

• Front Track: 12.75 inches (324 mm)
• Rear Track: 12.75 inches (324 mm)
• Weight (no battery): 4.08 pounds (1.85 kg)
• Height (overall): 9.5 inches (241 mm)
• Wheelbase: 10.6 inches (270 mm)
• Shock Length (front): 3.45 inches (88 mm) - Long
• Shock Length (rear): 3.98 inches (101 mm) - XX-Long
• Tires: Terra Groove 2.2″ all terrain
• Wheels (front/rear): 2.2″ chrome deep dish
• Wheel Diameter: 2.2 inches (71 mm)
• Overall Drive Ratio: 12.34:1

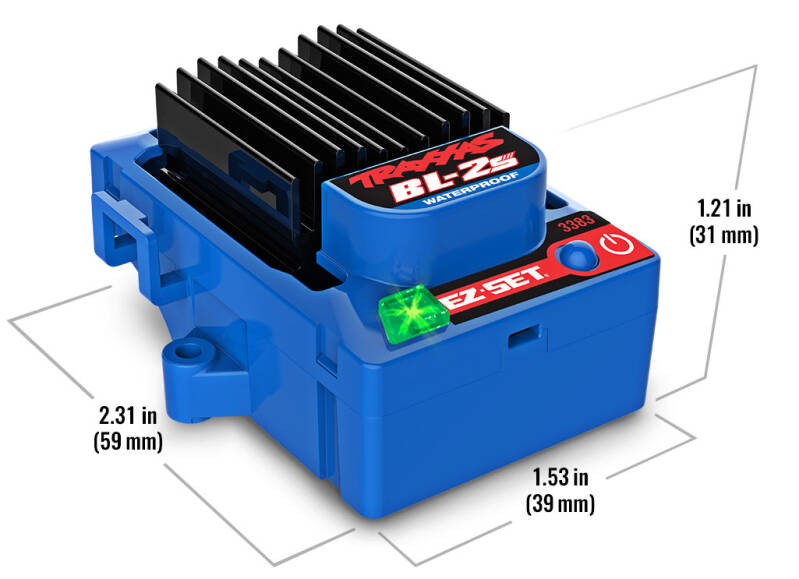

• Speed Control: BL-2s™ electronic speed control

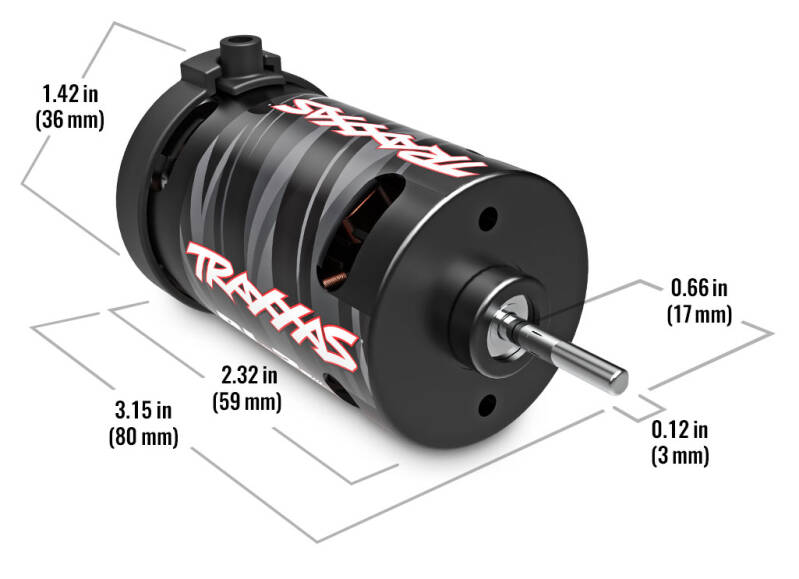

• Motor (electric): BL-2s™ 3300 kV sensorless brushless
• Differential Type: Planetary
• Gear Pitch: 48
• Chassis Structure/Material: Composite modified tub
• Drive System: 2WD
• Steering: Bellcrank
• Radio System: TQ™ 2.4 GHz (2-channel)
• Servo: Waterproof 2056 servo (80 oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 165 mm (6.49″) x 48 mm (1.89″) x 28 mm (1.10″)

What’s In The Box:

• 2WD BIGFOOT monster truck with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• High quality maintenance tools

Manufacturer: Traxxas

Part Number: TRX36334-4-R5

EAN: 020334026903

Motor Type: Brushless

Waterproofing: Waterproof

Drive: 2WD

Surface Type: Off-Road

Assembly Type: Assembled (RTR)

Scale: 1:10

Vehicle: Monster Truck

Skill Level: Skill Level 1 -  Models are generally ready to use straight out of the box and no previous experience with radio controlled models is required.
